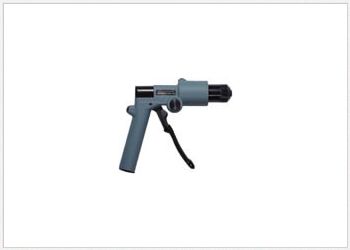

G749A CherryMax Hydraulic Hand Riveter

Lightweight, compact & versatile. Double stage hydraulic pump for rapid advance, low effort & high pulling force. Simple, durable construction.

Description

The Cherry G 749A is a heavy-duty, hand operated hydraulic riveter designed specifically for the most efficient installation of CherryMAX®. It weighs 2 3/4 pounds, is 15″ long without a pulling head and has a 0.518″ stroke. Pulling heads are not furnished with this riveter and must be be ordered separately. H749A-456 (straight), H753A- 456 (right angle) and H781-456 (offset) pulling heads fit directly on the G749A Riveter. Pulling head extensions are also available to reach into limited access areas; see CherryMAX® catalog for part numbers. The G749A riveter with above listed pulling heads will install Bulbed CherryMAX® rivets in 1/8″, 5/32″ and 3/16″ nominal and oversized diameters, in all materials, head styles and grip lengths. The G749A riveter with the H749A-456 or H753A-456 pulling heads will install 1 /8″, 5 /32″ and 3 A6″ Wiredraw CherryMAX® ‘A’ rivets in all head styles and materials up to a -4 grip length. With the H781-456 pulling head it will install 1/8″ and 5/32″ Wiredraw CherryMAX® ‘A’ rivets in all head styes and materials up to a -4 grip lengths. To install serrated stem MS-type rivets, use adapter 704A9 and a screw-on type serrated stem pulling head of the correct size
