Corner Type Style 2

Code: 04-518-SA

Please Call for A Price

£44.04

In Stock

Size

Clear

Description
Additional information

Description

Designed for accurate drilling of rivet holes for plate nuts Flexible handle provides hand clearance when jig is in use. View PDF link for specifications.

Additional information

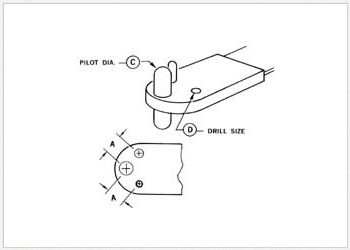

Size	04-518-SA – Bolt Size Ref.: #4, 'A' Dim.: .203", Pilot Diameter: .112", Drill Size: #40, 04-518-SB – Bolt Size Ref.: #6, 'A' Dim.: .218", Pilot Diameter: .139", Drill Size: #40, 04-518-SC – Bolt Size Ref.: #8, 'A' Dim.: .234", Pilot Diameter: .164", Drill Size: #40, 04-518-SD – Bolt Size Ref.: #10, 'A' Dim.: .250", Pilot Diameter: .191", Drill Size: #40, 04-518-SE – Bolt Size Ref.: 1/4", 'A' Dim.: .281", Pilot Diameter: .248", Drill Size: #40, 04-518-SF – Bolt Size Ref.: 5/16", 'A' Dim.: .312", Pilot Diameter: .312", Drill Size: #30

Size

04-518-SA – Bolt Size Ref.: #4, 'A' Dim.: .203", Pilot Diameter: .112", Drill Size: #40, 04-518-SB – Bolt Size Ref.: #6, 'A' Dim.: .218", Pilot Diameter: .139", Drill Size: #40, 04-518-SC – Bolt Size Ref.: #8, 'A' Dim.: .234", Pilot Diameter: .164", Drill Size: #40, 04-518-SD – Bolt Size Ref.: #10, 'A' Dim.: .250", Pilot Diameter: .191", Drill Size: #40, 04-518-SE – Bolt Size Ref.: 1/4", 'A' Dim.: .281", Pilot Diameter: .248", Drill Size: #40, 04-518-SF – Bolt Size Ref.: 5/16", 'A' Dim.: .312", Pilot Diameter: .312", Drill Size: #30
